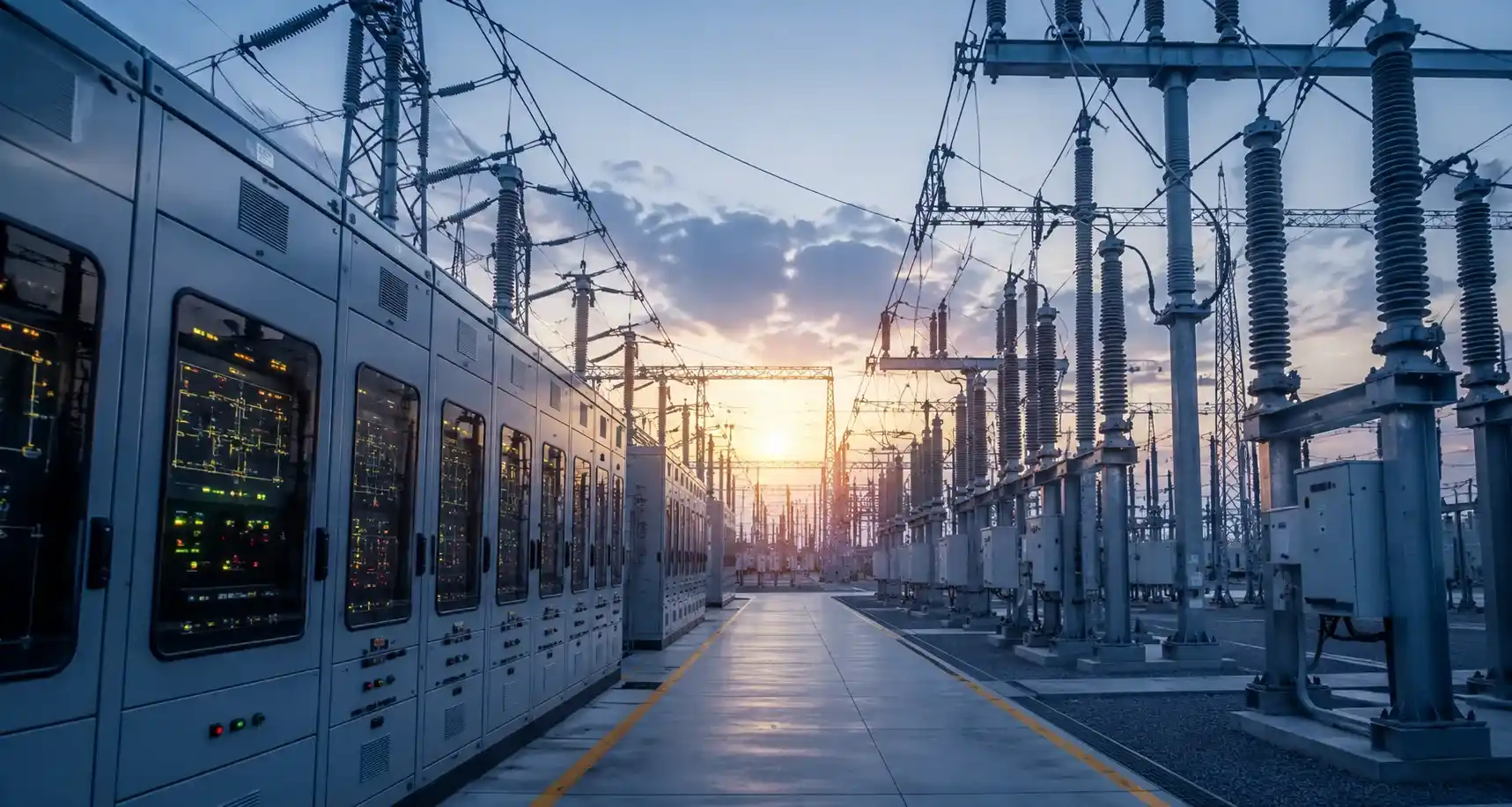

Substation Protection and Control Coordination in Modern Substation Design

A breaker that opens for the wrong fault, a relay that trips a second late, a backup scheme that doesn’t hand off cleanly to the primary these aren’t rare edge cases. They’re some of the most common findings in substation protection and control coordination reviews, and they’re also some of the most expensive to fix after a substation is already energized.

Substation protection control coordination is the discipline of making sure every protective device in a substation relay, breaker, fuses, recloser operates in the right sequence, at the right time, for the right fault. Get it right, and a fault clears with minimal disruption to the rest of the system.

Get it wrong, and a single fault on one feeder can trip an entire bus, take out a transformer unnecessarily, or leave equipment exposed to damage it should have been protected from.

This guide breaks down what protection and control coordination actually involves, the problems that show up most often in real substation projects, and how to build a coordination approach that holds up under both normal operation and worst-case fault conditions.

What Is Substation Protection and Control Coordination?

Protection and control coordination is the process of setting and sequencing protective devices — relays, circuit breakers, reclosers, and fuses. So that the device closest to a fault clears it first, while everything upstream stays in service.

It’s paired with control coordination, which governs how breakers, switches and automation schemes interact during both normal switching operations and fault conditions.

In practice, this means:

• Relay coordination — setting pickup currents and time delays so devices operate in the correct sequence (selectivity), with enough margin between zones to avoid both nuisance tripping and delayed fault clearing.
• Breaker failure protection — defining what happens if a breaker doesn’t open when instructed, and which upstream device clears the fault instead.
• Control logic coordination — making sure SCADA, automation, and interlocking schemes don’t conflict with the protection scheme’s intended sequence of operations.
• Backup protection — layering primary and backup protection so a single relay or breaker failure doesn’t leave a fault uncleared.

Need Engineering Support for Your Substation Protection Scheme?

American Power Engineers delivers protection coordination studies, relay setting calculations, and control scheme design for HV/MV substations across North America.

Why Protection and Control Coordination Matters

Coordination isn’t a paperwork exercise — it’s the difference between a fault being a minor, contained event and a fault becoming an extended outage or an equipment failure.

• Selectivity keeps outages small. A properly coordinated system isolates only the faulted section. A miscoordinated one can trip a main breaker for a fault on a single downstream feeder, taking far more load offline than necessary.
• Coordination protects equipment, not just clears faults. Transformers, buswork, and cable have thermal and mechanical damage curves. If protection doesn’t clear a fault before that curve is reached, you’re looking at equipment damage, not just a trip.
• It directly drives arc flash incident energy. Faster, correctly coordinated clearing times reduce the incident energy a worker would be exposed to during an arc flash event — coordination and arc flash studies are functionally linked, not separate exercises.
• It’s an audit and reliability compliance issue, not just a design issue. For BES-connected facilities, protection settings feed directly into NERC PRC standards. Coordination gaps identified after commissioning become compliance findings, not just engineering fixes.
• Inverter-based resources have changed the coordination math. Solar, wind, and BESS interconnections introduce fault current characteristics that behave very differently from synchronous generation, and traditional overcurrent coordination philosophies don’t always translate directly.

Common Substation Protection and Control Coordination Problems And How to Solve Them

Most coordination problems we encounter aren’t caused by engineers not understanding protection theory. They’re caused by predictable gaps in how studies are scoped, updated, and handed off between design and operations.

Problem: Relay settings were coordinated once at design, then never revisited.

A coordination study performed during initial design reflects the system as modeled at that point. Once load grows, generation is added, or upstream utility fault levels change, those original settings can drift out of coordination without anyone noticing until an event exposes it.

Solve it by treating protection coordination as a living study, refreshed whenever there’s a material system change — new interconnection, transformer replacement, reconductoring, or a utility-side fault level update — not a one-time deliverable filed away after commissioning.

Problem: Primary and backup protection don’t hand off cleanly.

Backup protection is supposed to act as insurance if the primary device fails to clear a fault. In practice, we frequently see backup relays set with too little time margin above the primary, or breaker failure logic that wasn’t validated against actual breaker interrupting times.

Solve it by explicitly modeling breaker failure scenarios in the coordination study, not just normal-clearing scenarios, and confirming margins between primary and backup are based on actual equipment operating times rather than rule-of-thumb spacing.

Problem: Coordination studies treat inverter-based resources like synchronous generators.

IBR fault current contribution is typically limited and shaped by the inverter’s controls, not by generator impedance. Applying traditional overcurrent coordination philosophy without accounting for this can result in protection that either fails to detect faults reliably or nuisance-trips healthy circuits during normal inverter response.

Solve it by basing IBR-connected protection schemes on manufacturer-specific fault current data and current industry guidance for inverter-based resource protection, rather than reusing settings philosophies built for synchronous plants.

Problem: Control and automation logic conflicts with the protection scheme’s intended sequence.

We’ve seen cases where SCADA-initiated switching, automatic transfer schemes, or reclosing logic interact with protection in ways nobody explicitly designed — for example, an automatic transfer scheme that re-energizes a bus before protection has confirmed the fault cleared.

Solve it by reviewing protection and control design together, not as separate workstreams handled by different teams on different timelines, and testing control logic against fault scenarios, not just normal operating scenarios.

Problem: Coordination isn’t re-validated after interconnection-driven design changes.

A substation’s protection scheme is often finalized around the same time interconnection studies are still evolving. When POI requirements, short circuit contributions, or utility protection requirements shift late in the process, coordination studies don’t always get updated to match.

See our Grid Interconnection Engineering services for how we keep interconnection study assumptions and substation protection design aligned as a project develops, rather than finalizing each in isolation.

Solve it by locking coordination sign-off after interconnection requirements are finalized, not before, and building a formal checkpoint into the project schedule specifically for this handoff.

Need Engineering Support for Coordinating a New or Existing Substation?

Our team performs protection coordination studies, relay setting calculations, and control scheme reviews for utility-scale substations, industrial facilities and renewable interconnections.

View Engineering Services

Building a Coordination Approach That Holds Up

A protection and control coordination program that stays reliable over the life of a substation generally includes five components:

1. A current system model. Coordination is only as good as the short circuit and load flow data behind it — refresh the model whenever generation, load, or topology changes materially. This is the same underlying model used in power system studies, which is why coordination work should never be scoped in isolation from broader system studies.
2. Documented margins, not assumptions. Time-current curves and margins between zones should be calculated and recorded, not carried forward from a template or a “close enough” prior project.
3. Breaker failure and backup validation. Every primary protection scheme should have its backup path explicitly modeled and tested against realistic equipment operating times.
4. Control logic reviewed against fault scenarios. SCADA, automation, and reclosing schemes should be checked for how they behave during a fault, not just during normal switching.
5. A defined re-coordination trigger. Interconnection changes, equipment replacements, and utility system updates should all trigger a coordination review — not wait for the next scheduled study cycle.

Substations designed with this discipline from the start typically avoid the two most expensive outcomes: field-discovered miscoordination after energization, and rework driven by late-stage interconnection changes that were never reflected back into the protection design.

How American Power Engineers Supports Protection and Control Coordination

American Power Engineers provides the engineering foundation for substation protection and control coordination, from initial design through commissioning support.

Our work includes:

• Protection coordination studies and relay setting calculations
• Breaker failure and backup protection scheme design
• Control and SCADA logic review against protection intent
• IBR-specific protection coordination for solar, wind, and BESS interconnections
• Arc flash studies aligned with coordination settings
• Coordination updates tied to interconnection and system changes

We support HV/MV substation projects for utilities, developers, and EPCs across every major North American interconnection footprint. For the full scope of our substation work, visit our Substation Design engineering services page.

FAQs

What is the difference between protection coordination and control coordination?

Protection coordination governs how relays, breakers, and fuses respond to faults, ensuring the correct device clears a fault first. Control coordination governs how switching, automation, and SCADA logic interact with that protection scheme during both normal operation and fault events. The two need to be designed together, since automation logic can unintentionally override or conflict with protection’s intended sequence.

How often should a substation coordination study be updated?

There’s no fixed calendar interval updates that should be triggered by system changes, not time alone. New interconnections, transformer or breaker replacements, utility fault level revisions, and load growth are the most common triggers. Many facilities also complete a periodic review every few years as part of routine reliability compliance practice.

Does adding solar, wind, or BESS to a substation require re-coordination?

Almost always, yes. Inverter-based resources contribute fault current differently than synchronous generation, which can change fault levels seen by existing relays and require new or revised protection settings even on circuits that weren’t directly modified by the new interconnection.

How is protection coordination related to arc flash studies?

They’re directly linked. Arc flash incident energy calculations depend on how long a fault is allowed to persist before protection clears it, which is a direct output of the coordination study. Faster, well-coordinated clearing times reduce incident energy; miscoordinated or overly delayed settings increase it.

What’s the most common cause of coordination failures found after commissioning?

Outdated system data is the most frequent root cause — settings calculated against an earlier version of the system model that no longer reflects actual fault levels, load, or topology. The second most common cause is backup protection margins that were never validated against real breaker operating times.

Can existing substations be re-coordinated without a full outage?

In many cases, yes. Relay setting updates on microprocessor-based relays can often be applied with planned, brief switching windows rather than an extended outage, particularly when the underlying scheme (not just the settings) is being reused. The scope depends on whether hardware changes are also required.
